Daimler Trade-Mark Fluted Radiator

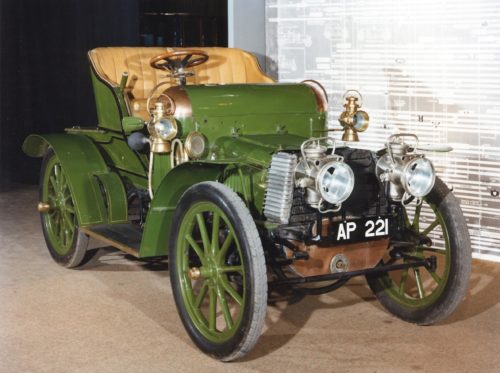

1903 Daimler Tourer Showing Horizontal Radiator
and Finned Side Tanks
The Daimler trademark fluted radiator grille started life with a practical purpose rather than just as a styling element.
The first radiators on early cars were a total loss system of cooling water flowing through horizontal water pipes with cooling fins attached. The driver would have to stop regularly and top up the water as it boiled away.
By 1902/03 the Daimler radiators had finned aluminium water tanks at either side to increase the volume of water. In addition to the fins on the tubes, the fins on the tanks helped to dissipate engine heat in the same way that the fins do on air-cooled motorcycle engines.

Radiator Top Tank Seen From The Engine Bay
1911 Daimler TA23 – DU 1
By 1904 the cooling system layout had changed to a much taller radiator, which was now higher than the top of the engine and with vertical water pipes improving thermo-syphon circulation and therefore cooling. This taller radiator was fitted with a finned aluminium top tank to which the top hose and filler cap were connected, with optional temperature gauge.
This radiator layout continued in production for almost twenty years.
Progressively from 1919 to around 1923, as new cars were developed, the radiator design changed and the top tank became an integral part of the radiator, made out of pressed brass and brazed, rather than bolted, to the radiator core. The fins were reduced in size to become the characteristic Daimler ribs / flutes.
Sand Casting Process

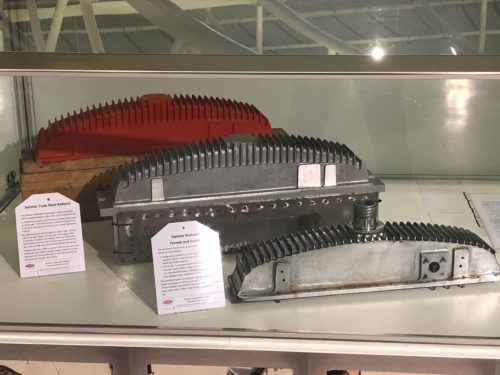

Radiator Tank Former Display at 2020 Daimler Exhibition
The aluminium finned tanks were made by a process known as ‘Sand Casting’ and we, the Jaguar Daimler Heritage Trust, have a number of artefacts in our collection which illustrate the stages in the process:
- Damp sand is placed in a steel frame or box, and a wooden ‘former’ pressed into it (the orange piece at the rear of the picture) to make the shape required.
- The former is then removed.
- Molten aluminium is poured into the frame.
- When cooled, the box is removed and the sand knocked away revealing the aluminium casting.
- The casting is then cleaned and machined as necessary (centre of picture).
- A series of holes are drilled around the base, using a template, to ensure they will line up with the holes in the top of the radiator core.
- The top tank is bolted to the core.
- The ancillaries are fitted: filler neck and radiator cap; top hose connector; brackets to which the bonnet latches fix (front of picture).
Daimler V8 ‘Fluted’ Radiator Surround

Daimler V8
Radiator Grille

Daimler Number Plate Surround
FTA 848D
This radiator surround is from a Daimler V8 Saloon (Daimler version of the Jaguar Mark II Saloon) and is purely decorative. The outer part of the surround is pressed brass which is then chrome plated. The vertical bars are produced separately, chrome plated and bolted into the rear of the radiator surround.
The actual radiator sits behind this at the front of the engine compartment.
The fluted design is repeated at the rear of the car in the chrome surround above the number plate which carries both the number plate and reversing lights.
Author: Tony Merrygold
