2010 C-X75 Micro Turbine Hybrid Hyper Car
This vehicle is on display in the Jaguar Gallery at Coventry Transport Museum

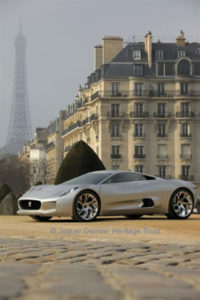

2020 C-X75 in Paris

Created to celebrate 75 years of Jaguar, Project C-X75 is the ultimate expression of the brand’s design and engineering innovation.  The C-X75 was revealed as a concept at the 2010 Paris Motor Show, where it received AutoWeek’s coveted “Best in Show” award and the 2010 Louis Vuitton Classic Concept award.

Project C-X75 was designed to deliver stunning on-road performance, while adopting cutting-edge technology for remarkably economical running.

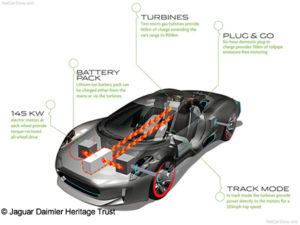

C-X75 Concept Technical Diagram

C-X75 is a range extended hybrid with a 19 kWh lithium-ion battery pack powering four 195-hp electric motors – one for each wheel.  The batteries are re-charged by two 70 kW micro turbines made by Bladon Jets which provide additional power to the electric motors when needed.

The advanced power-train gives an all-electric range of 110 km (68 miles) plus a potential top speed of 330 km/h (205 mph), acceleration from 0-100 km/h (62 mph) in 3.4 seconds, and 80-145 km/h (50-90 mph) in just 2.3 seconds.

C-X75 Concept Air Flows

Active aerodynamics allow for a simple fuselage section that remains stable at very high speeds.  The hybrid technology results in CO2 emissions of just 28 g/km on the EU test cycle.

The twin seats are fixed and the steering wheel, controls, main binnacle and pedal box all adjust towards the driver.  The seats are attached to the bulkhead as in a single-seater racing car, and air to feed the turbines passes smoothly around them via channels in the structure of the body.

The design team combined designs from instrumentation in the new XJ saloon with those from fighter aircraft to create virtual 3D ‘gimbals’ around which the gauges wrap and rotate to provide status updates.

C-X75 stays true to the long-held Jaguar design philosophy of natural, flowing lines and simple, elegant forms.  The design team took their inspiration for the innovative engineering and functional design elements of cars like the 1950s C-type and D-type racers and unique 1966 XJ13.

The car on display in Coventry Transport Museum is the original concept car revealed at the Paris Motor Show in September 2010.

Vehicle Specification

Body & Chassis: Coupé, 2 doors, 2 seats, extruded and bonded aluminium chassis and body with carbon fibre reinforcement, active aerodynamics.

Engine: Twin lightweight micro gas turbines, lithium ion battery pack, individual electric motors driving each wheel.

Power:

Weight:                                 1,350 kg (2,970 lb)

Max Speed:                             330 km/h (205 mph)

Acceleration:                    0-100 km/h (62 mph) in 3.4 seconds

Transmission:  No gearbox; direct coupled electric motors, 4 wheel drive.

Dimensions:

Owner: Jaguar Land Rover
